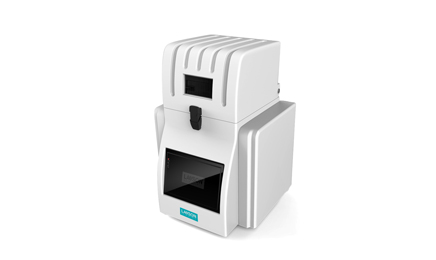

DHTISSUE-48
Multi-sample Tissue Grinder
48*(0.2-0.5ml) /48*2ml

DHTISSUE-48 Multi-sample Tissue Grinder is a special, fast, efficient, multi-tube homogenization system. It can extract and purify raw DNA, RNA, and proteins from any source, including soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, paleontological specimens, and more.

Product Features
Compared with other sample preparation methods currently available, the DHTISSUE-48 Multi-sample Tissue Grinder has the advantages of wide applicability, high efficiency, and flexibility. The system avoids the many drawbacks of traditional methods such as grinding, homogenization, and ultrasonic treatment, which are laborious, time-consuming, and inefficient. It can efficiently, quickly, and stably lyse and purify nucleic acids and proteins from various types of samples.

Product Features

Compared with other sample preparation methods currently available, the DHTISSUE-48 Multi-sample Tissue Grinder has the advantages of wide applicability, high efficiency, and flexibility. The system avoids the many drawbacks of traditional methods such as grinding, homogenization, and ultrasonic treatment, which are laborious, time-consuming, and inefficient. It can efficiently, quickly, and stably lyse and purify nucleic acids and proteins from various types of samples.

Product Applications
Sample Types for Grinding:
1. Plant Tissues: Roots, stems, leaves, flowers, fruits, seeds, etc.
2. Animal Tissues: Brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph node, muscle, bone, etc.
3. Fungi and Bacteria: Yeasts, E. coli, etc.
4. Food and Drugs: All kinds of food, tablets, etc.
5. Volatile Samples: Coal, oil shale, wax products, etc.
6. Plastics and Polymers: PE, PS, textiles, resins, etc.


DHTISSUE-48 Multi-Sample Tissue Homogenizer uses a special vertical up-down integrated vibration mode, which achieves rapid grinding of samples through the high-frequency reciprocal vibration, impact, and shear of grinding beads (zirconia, steel, glass, ceramic). This ensures the samples are fully and uniformly ground, and have better sample repeatability with no cross-contamination between samples.


High efficiency with multiple operations and good results	Efficient and quick work can be completed within 1 minute for grinding 2x24, 2x48, and 4x96 samples. It saves time and effort, and the differences between batches and within batches are small. The extracted protein has higher activity and the nucleic acid fragments are longer.
No cross-contamination	The sample tubes are in a fully enclosed state during the crushing process and can use disposable centrifuge tubes and beads. The samples are kept intact in the tubes, avoiding cross-contamination between samples and external contamination.
Simple operation	1. Built-in program controller, which can set parameters such as grinding time and rotor vibration frequency; 2. User-friendly operating interface.
Good stability	1. Using a vertical oscillation method, the grinding is more complete and the stability is better; 2. During the instrument operation, the noise is less than 55dB, which will not interfere with other experiments or instruments.
Convenient for low-temperature operation	When a low-temperature grinding environment is needed, the adapter containing the sample can be immersed in liquid nitrogen for cooling for 1-2 minutes, then taken out and quickly fixed to the main unit for grinding, without the need for further freezing, saving liquid nitrogen.
Good reproducibility	The same program set for the same tissue sample yields the same grinding effect. The working time is short, and the sample temperature does not rise.

Technical Specifications
Application field:	Organic grinding, homogenization, cell disruption, tissue lysis, material dispersion, preparation, sample mixing, and oscillation
Processing capacity:	Maximum processing capacity of 24 samples at the same time within 15 seconds, including 12-well and 24-well liquid nitrogen cooling adapters
Compatible sample tubes:	48(0.2-0.5ml) /482ml /12(7-15)ml /225ml /2*50ml, various specifications of grinding tubes can be customized
Display mode:	LCD screen display, touch screen display (upgradeable)
Anti-vibration principle:	Innovative anti-vibration principle of Schleifen-1 from Germany and a three-dimensional motion of up and down, left and right shaking - innovative grinding ball motion mode to ensure maximum sample processing and instantaneous crushing effect
Maximum feeding size:	No requirement, adjustable according to the adapter
Final particle size:	~5µm
Number of grinding platforms:	(Acceptable number of grinding jars) >2
Fastening device:	With automatic centering
Homogenization speed:	0~70 Hz/second, working time: 0 seconds~99 minutes, user can set it by themselves
Grinding ball diameter:	0.02~30mm
Grinding ball material:	Alloy steel, chrome steel, zirconia, tungsten carbide, quartz sand
Acceleration:	Reaches maximum speed within 2 seconds
Deceleration:	Reaches minimum speed within 2 seconds
Noise level:	<55db
Grinding mode:	Wet grinding, dry grinding, and cryogenic grinding are all possible
Temperature control can be additionally equipped with:	The ability to upgrade to ultra-low temperature liquid nitrogen cooling or air cooling
Adapter material:	Polytetrafluoroethylene (PTFE), alloy steel
Safety instructions:	With an automatic centering locking device and safety lock during operation, full protection throughout
Grinding kit material:	Hardened steel, polytetrafluoroethylene (PTFE), zirconia
Dimensions:	413455cm
Weight:	28 Kg

Single Page - Color Page
Name:	Author:	Action:
Multi-sample Tissue Grinder DHTISSUE-48	homogenizer	Download

Related products
Name:	Model:
plant tissue grinder	DHFSTPRP-24
animal tissue grinder	DHTISSUE-24D
Multi-sample Tissue Grinder	DHTISSUE-48

Product List

DHTISSUE-48	Unit
Host Machine	Unit
Adapters	set
Cooling Adapter	Set
Stainless steel grinding bead No.5	piece
Zirconia Grinding Bead No.5	Piece
Stainless steel grinding bead No.3	piece
Special Grinding Tube	Piece
Special Bead Loading Gun	Set
Extraction kit: animal tissue-DNA	set
Extraction kit: animal tissue-RNA	set
Extraction kit: animal tissue-protein	set
Extraction kit: plant tissue-DNA	set
Extraction kit: plant tissue-RNA	set
Extraction kit: plant tissue-protein	set
Extraction kit: microbial DNA	set
Extraction kit: microbial RNA	set
Extraction kit: microbial protein	set

Description: 1; Ø2ml,1（2 in 1）; Ø2orØ1.5ml,1（2 in 1）; 1000（2 in 1）; 1000（2 in 1）; 1000; 200; 1（Optional）; LW-D-P1（Optional）; LW-D-P2（Optional）; LW-D-P3（Optional）; LW-Z-P1（Optional）; LW-Z-P2（Optional）; LW-Z-P3（Optional）; LW-W-P1（Optional）; LW-W-P2（Optional）; LW-W-P3（Optional）
